Gas Valves

1 Gas Valve 24V * Diaphragm Gas Valve 1 NPT. 24V. 1021000 BTU 1/2 PSI Max Pressure. 14Va Diaphragm Gas Valve, 1", 1021 Cfh Capacity, 1/2 Psi Pressure, 24Vac, Straight Through, 6" Leadwires, 1/8"-27 NPT Pilot Tapping, Upright Horizontal Mounting, 1/8"-27 NPT Bleed Tapping, 5 Second Maximum Valve Opening Timing, 2 Second Maximum Valve Closing Timing, 32-125 Degree Operating Temperature Range, Aluminum Body, Natural Gas, LP and Manufactured Gas

Gas Valve 24V 3/4 * Diaphragm Gas Valve 3/4 NPT. 24V. 668000 BTU. 1/2 PSI Max. Pressure. 14Va

1-1/4 Gas Valve 24V * Diaphragm Gas Valve 1-1/4 NPT. 24V 2100000 BTU. 1 PSI Max Pressure. 14Va

Gas Valve 24V 1-1/2 * Diaphragm Gas Valve 1-1/2 NPT. 24V. 2400000 BTU. 1 PSI Max. Pressure. 14Va

2 Gas Valve 24V * Diaphragm Gas Valve 2 NPT. 24V. 4178000 BTU. 1 PSI Max. Pressure. 14Va

1 Gas Valve 24V Two Stage * Two Stage Pressure Regulating Gas Valve. 24 Volts. 1 Npt. Rapid Opening.

2 stage diaphragm valve 1-1/4 * Two stage pressure regulating gas valve. 24 volts. 1-1/4 NPT. 480 to 1600 CFH. Low fire 0.8 to 2 in/wc, High fire 3 to 4.5 in/wc.

Replace Gas Valve Top Adj Reg * Replacement Gas Valve For G60CbA1 & 3 CbG134910111416 And 17 DbG1 QbG1234567 And 8 QbK1 QbL1 & 2 RbG1 & 2 RbK1 And 2 And RgL1. With Gas Pressure Regulator

Combination Dual Seated Gas Valve. Pilot safety And Pressure Regulator. 24V Coil.5 Amp. 1/2 X 1/2 Or 1/2 X 3/4 NPT Using Adaptor. 130000 BTU. 0F Minimum Includes 1/2 X 3/8 Bushing.

Gas Valve 24V 1/2" X1/2" Slow-Opening Gas Valve w/ 3/4" Add-On Flange, & 1/2" x 3/8" Red. Bushing, w/ LP Kit Replaces: Carrier OEM VR8200H2002

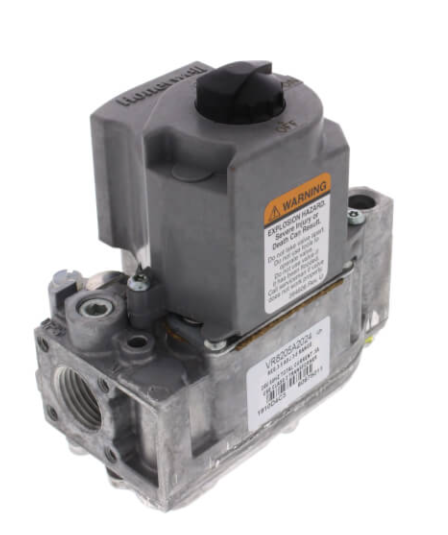

1/2 NPT direct ignition dual automatic combination valve, 24vac, single stage, standard opening, 3.5"wc regulator setting, 20-200 cfh capacity, 1/2# pressure rating, 1/8" pressure tapping with plug, for use with hot surface and direct spark systems, includes one 3/4" straight flange, one 1/2"x3/8" reducer bushing, lp conversion kit

Direct Ignition 1/2" Gas valve 3.5" wc Standard opening. -40 to 175F, compact 2.3" swing radius.

Direct Ignition 1/2" Slow Opening Gas Valve 3.5"wc, -40 to 175F, compact 2.3" swing radius.

1/2 Univ Elec Gas Valve 24V * Universal Electronic gas valve. 1/2 NPT. 24 volts. Standard opening. Intermittent pilot, Direct Spark or Hot surface ignotion. 150 CFH @ 1 in drop.

Combination Gas Control * Combination Gas Valve. 24V. Standing Pilot. 190 CFH. Regulator Set @ 3.5 Nat. Or Lp Gas. 1/2 X 3/4 With One 1/2 Reducer Bushing.

3/4X3/4 3.5 Wc W 393691 Lp Ki * Combination Gas Valve. 24V. Standing Pilot. 200 CFH. Inlet 3/4 Outlet 3/4 Nat Or Lp Gas. 3.5 Regulator .

Standing Pilot Combo Gas Valve Step-Open Step Open Standing pilot combination gas valve. Redundant. 24 volts. Step opening. 3/4 NPT with two 3/4X1/2 reducer bushings. Maximum inlet 1/2 PSI. 30 to 300 CFH.

Combination Gas Valve. 24V. Standing Pilot. Slow Opening. 200 CFH. Regulator 3.5 . Natural Or Lp Gas. Inlet 3/4 Outlet 3/4 .

24vac 3/4 standing pilot combination valve, 3.5" water column, standard opening, single stage, straight through with flange, 30000 btu to 290000 btu max, 1/2# pressure rating, 1/8" npt pressure tap with plug, includes 3/4x1/2"reducer bushings, q340 thermocouple, natural to lp conversion kit

Gas valve for Lochinvar A.O. Smith Honeywell 3/4"X3/4" Gas Valve 1.8" wc 24v VAL2412 100171795

Intermittent redundant combination gas valve. 24 volts. Slow opening. 3/4 NPT. 30 to 415 CFH. Set at 3.5 WC. Max inlet 1/2 PSI.

3/4X3/4 3.5 Wc W/ Lp Ki 3/4 inch redundant intermittent pilot gas valve 24v straight through 300K btu with LP kit. VAL3935

3/4 Gas Valve Step Opening * 3/4 inch redundant intermittent pilot gas valve 24v straight through 300K btu step opening.

1/2X3/4 3.5 Wc 393691 Lp Kit * 24 Vac Dual Direct Ignition Gas Valve with 1/2 in. x 3/4 in. inlet/outlet, 3.5 in. wc
