Damper And Valve Actuators

Sight Glass 3/8 ODF sweat With Color Coded Moisture Indicator Also Works W/ Poe Oil Refrigerants. Best To Install Between Drier & Tev 4.62 Long Copper Plated Steel Conn.

Powermite 599 MT Series SAS Electronic Valve Actuator, SR, 24V, 0-10V or 4-20 mA Proportional Control REPLACES: SQS65.5U

Liquid Eye 1/4Mf X 1/4Mf * Liquid Eye Sight Glass. 1/4 Male Flare Connections. 3-1/8 Long.

Direct coupled valve actuator. 24 volts spring return. 0-10 or 4-20 mA input. 3/4 inch stroke. 225 lbs force. Used with 599 Flowrite valves.

Damper aux switch for 1/2" shaft 5A2A @120/240 vac, 5A @30 vdc. SPDT Blk-COM, White-NC, Red-NO 36" cable.Steel ball actuated snap switch. Switches at or before 15 degrees below Horizontal and at or before 10 degrees above horizontal. Replaces P370 and TS470

Valve actuator 0-10VDC SR 24V * Direct coupled valve actuator for VG7000 series valves 1/2 to 1-1/2 NPT. 24 volts spring return stem up. Input 0-10, 2-10, 6-9 VDC or 0-20, 4-20 mA direct or reverse acting. 61 lbs torque. 12 VA power consumption. Manual override. Max operating tempe

Direct coupled valve actuator. 24V. 90 lbs force. 3 wire floating. Non spring return. 3/4 inch stroke.

Direct coupled valve actuator for Johnson VG7000 series valves. Non spring return. 24 volts. Input 0-10, 0-5, 05 5-10 VDC. Direct or reverse acting. 90 lbs force. Stroke 5/16 to 25/32 inch.

Valve Actuator 24V SPDT

Electric zone valve actuator for Johnson VG4000/5000 series valve bodies. 24 volts. Adjustable input signal 0-10, 0-5 or 5-10 VDC. Force 21.5 lbs. Max fluid temp 203F.

Valve Actuator * 24 Vac Three Wire Floating Electric Actuator For VB5X39/VG7000 Series Valves. Non-Spring Return.

24Vac, Two Position, Floating Control, or Proportional, 0-10Vdc, 2-10Vdc, (0)4-20mA, 180 lb-in Torque, 5/16"-1" Stroke, 48" Cable, Spring Return Stem Up Direct Coupled Globe Valve Actuator with Manual Override

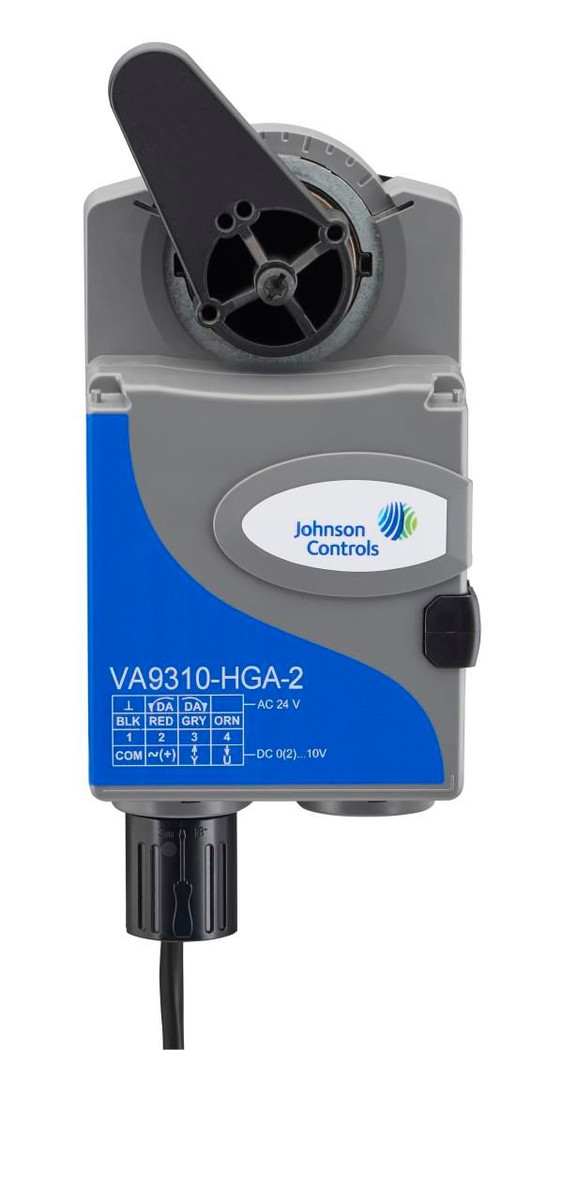

NSR valve actuator 88 lb-in. 0/2-10 VDC, 4-20mA, Floating and On/Off multi-input,non-spring return actuator. 24VAC/VDC, 90 second timing, 120"plenum rated cable. For use on VG18XX & VG12XX series ball valves 1/2"-2".

Actuator ball joint

damper Linkage Kit * Damper Mounting Kit. Mounts Actuators To side Of Duct Or Wall. Includes Crank Arm damper Arm Mounting Bracket 2 Ball Joints And Push Rod. OBSOLETE

Manual potentiometer. 135 Ohms. Mounts on handy box.
