Boiler Feeds and Cutoffs

Boiler Feed Pump Cont. 1-1/4 * Boiler Feed Pump/ Low Water Cut-Off. 2 Snap Acting Switches 1 SPST 1 SPDT. Rating 7.4A @ 120V 3.7A @ 240V. 1-1/4 Equalizer Tappings 3/4 Tri-Cock And Gauge Glass Tappings.

Pump Control * Same As 150Mcd Except Has Magnetic Open Contacts Instead Of mercury Switches. 345Va @ 120 & 240V. See Diagram For Piping Info.

Switch 47-2 51-2 51S2 63 247-2 * Switch For 47-2 51-2 51S2 63 And 247-2.

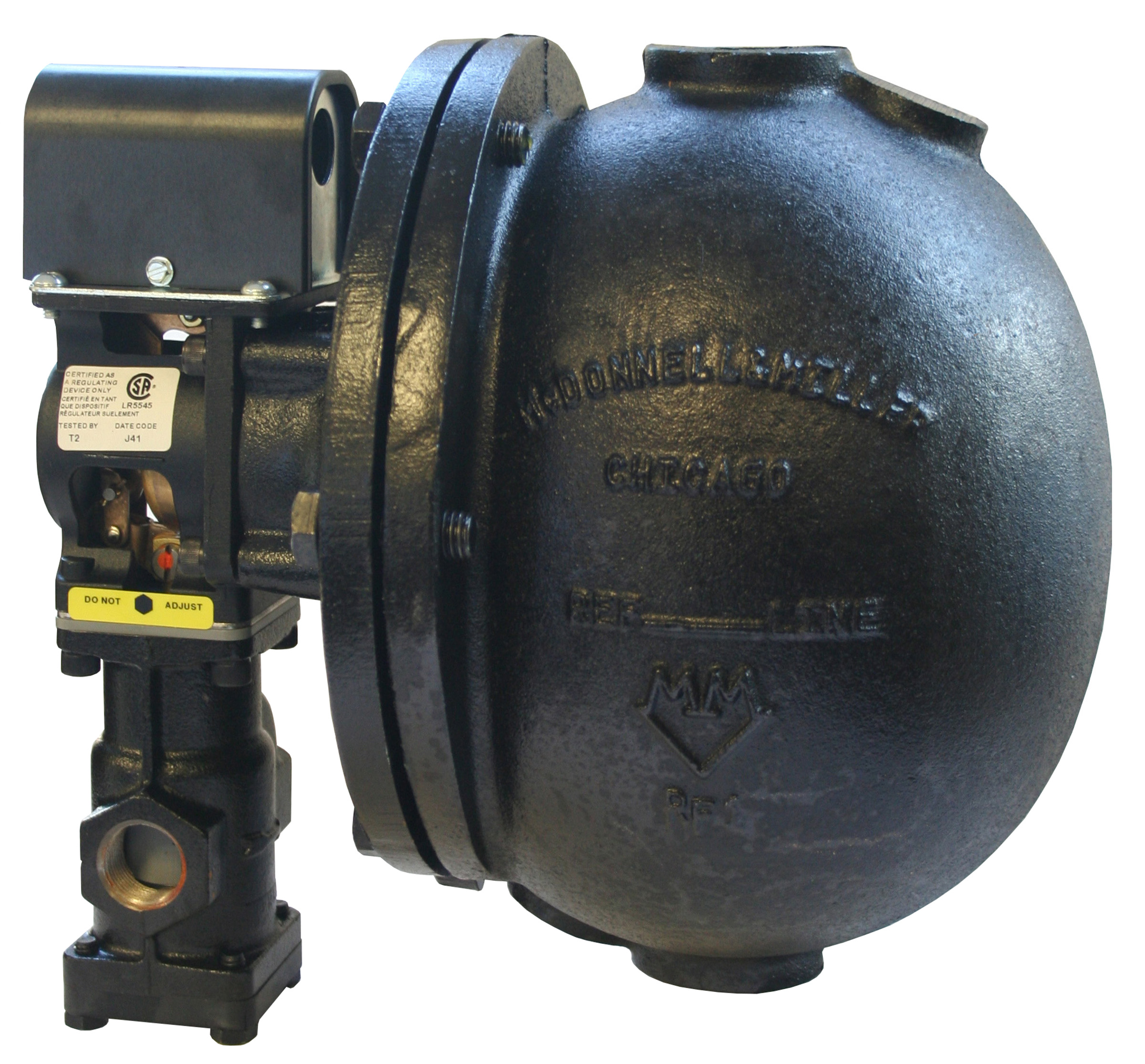

Water Feeder * Water Feeder For Condensate Receivers. 35 PSI Max. Receiver Pressure. 150 PSI Max. Water Supply Pressure.

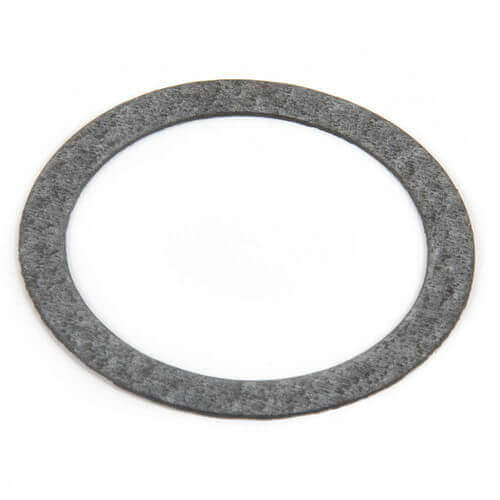

Valve Bracket Gasket For 27W * Replacement Valve Bracket Gasket For 27W. REPLACES: 311100 PURCHASED BY THE 5 PK, SOLD INDIVIDUALLY

Water Feeder * Water Feeder For Steam Or Hot Water Boilers. Maximum Boiler Pressure 30 PSI.

Water Feeder * Water Feeder For Steam Or Hot Water Boilers. SPDT Cut-Off Switch. Rating 10.2A @ 120V 5.1A @ 240V. Max Boiler Pressure 30 PSI

Water Feeder * Water Feeder For Condensate Receivers Includes Float Bowl. 35 PSI Maximum Receiver Pressure. 150 PSI Maximum Supply Water Pressure.

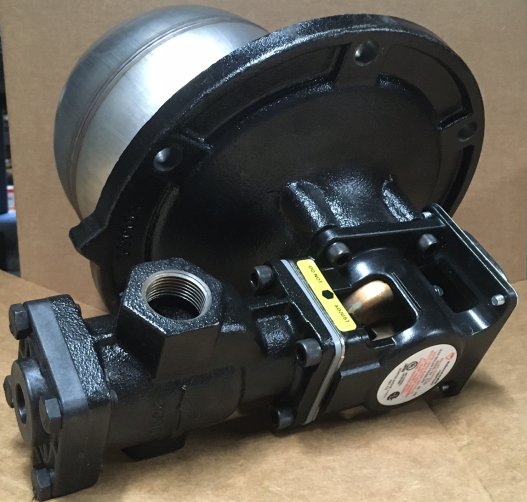

Head Assembly For 25A * Head Assembly For McDonnell Miller 25A Make Up Water Feeder.

Replacement Switch Man. Reset * Manual Reset Switch For 47-2 51-2 51S263 And 247-2.

Gasket 37-101 * Gasket For 25A 101A And 101A24. PURCHASED AS 5PK SOLD INDIVIDUALLY REPLACES: 324435

Cutoff Switch * Low Water Cutoff Switch For Steam BoileR2 SPST Switches 1 For Boiler Cut-Off & 1 For Boiler Feed. 7.4A @ 120 3.7A @ 240Insertion Length 1-3/4 . Fits 2-1/2 NPT boiler Tapping. Max Boiler Press 20 PSI.
